2004 Robinhood 33' (10.06 m) Flybridge Cruiser
Tenants Harbor, Maine, United States
Gazebo
Gazebo was one of the last of the Robinhood 33 Flybridge Cruisers built. With her Northern Lights 5kw generator, air conditioning/reverse cycle heat, a single 440 hp Yanmar diesel offering a cruising speed of 15 knots with just over 1000 hours on her meter, Evolution drive system, and extra Sounddow
Flag of Registry: United States
- Flybridge
- Power
- Used
- Diesel
- Fiberglass Hull
- HIN/IMO: HDOG0037D404
Description
2004 Robinhood Flybridge Cruiser
Gazebo was one of the last of the Robinhood 33 Flybridge Cruisers built. With her Northern Lights 5kw generator, air conditioning/reverse cycle heat, a single 440 hp Yanmar diesel offering a cruising speed of 15 knots with just over 1000 hours on her meter, Evolution drive system, and extra Sounddown insulation Gazebo is well equipped and ready to cruise. Maintained by Lyman Morse annually Gazebo presents good value on todays market.
Wave Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by East Coast Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
HIN/IMO: HDOG0037D404
Official Number: 1156620
LOA: 33' (10.06 Meters)
Type: Power- Used
Year: 2004
Beam: 12' 2''
Draft Max: 4'
Cabins: 1
Heads: 1
Fuel Type: Diesel
Hull Material: Fiberglass
Hull Shape: Deep Vee
Fuel Tank: 225 Gallons (851.72 Liters)
Fresh Water: 146 Gallons (552.67 Liters)
Holding Tank: 29 Gallons (109.78 Liters)
Displacement: 13500
Designer: Clive Dent
Builder: Robinhood Marine
Photos click to view all
Engines
Engine 1
- Engine Make: Yanmar
- Engine Model: 6LY2A-STP
- Engine Year: 2004
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 440.00
- Hours: 1038.00
- Engine Location: Middle
Full Details
Vessel Details
Hull and Deck
Hull
The hull of Gazebo is solid fiberglass up to waterline. Above the waterline the hull is end-grain balsa cored. Also of note:
- White gelcoat hull
- Dark green boot stripe
- Green antifouling on bottom
- V-bottom with hard chines, full keep with skeg to protect the propeller
Deck
The decks, and superstructure are fiberglass with balsa-core with two-tone beige and white cockpit sole and decks. Also of note:
- Teak covering boards and bowsprit with Cetol-finish
- Stainless steel side and bow rails, and raised bulwarks
- Two deck hatches on coachroof
- Fiberglass swim platform with ladder under platform

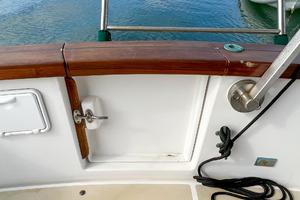

- Transom door to starboard
- Stainless steel bow rail extending aft to cockpit with a gate at helm door
- Fiberglass bowsprit with two anchor rollers
- Simpson Lawrence Sprint 1000 electric windlass with dual controls
- (4) Bronze spring line cleats
- Large bronze towing cleat amidships on stern with hawse pipe
- Dark green bimini on flybridge with green privacy curtains
Flybridge
- Stainless steel and teak ladder to flybridge
- (2) Pompanette helm seats
- Bench seat aft
- Dark green privacy curtains and a bimini top
- Anodized aluminum mast on port aft cover on flybridge
Electronics

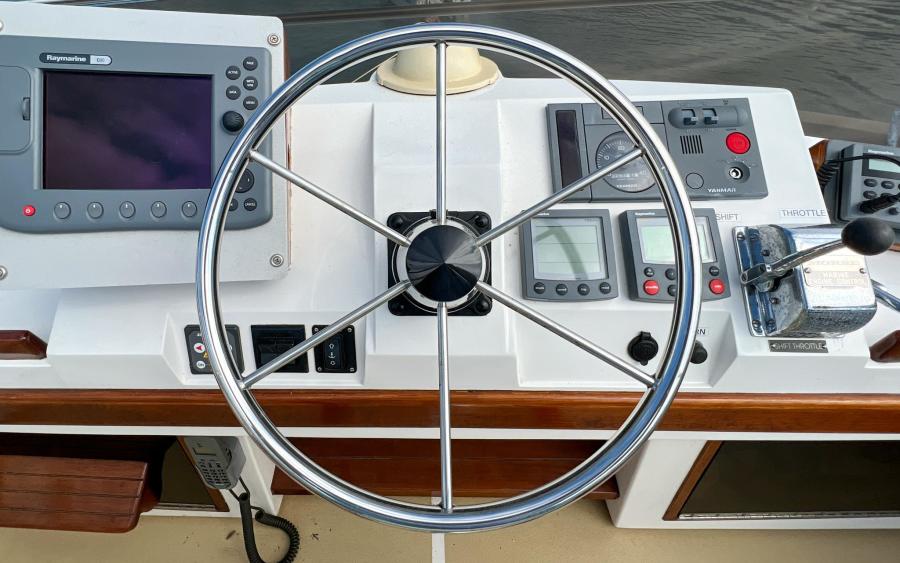

Lower Helm Station
- Raymarine touch screen multifunction display
- Raymarine C-80 multifunction display
- Raymarine ST-6001 hydraulic autopilot
- Raymarine ST-60 Tridata depth/speed/log display
- Raymarine Ray 230 marine VHF
- Raymarine Ray 430 loudhailer

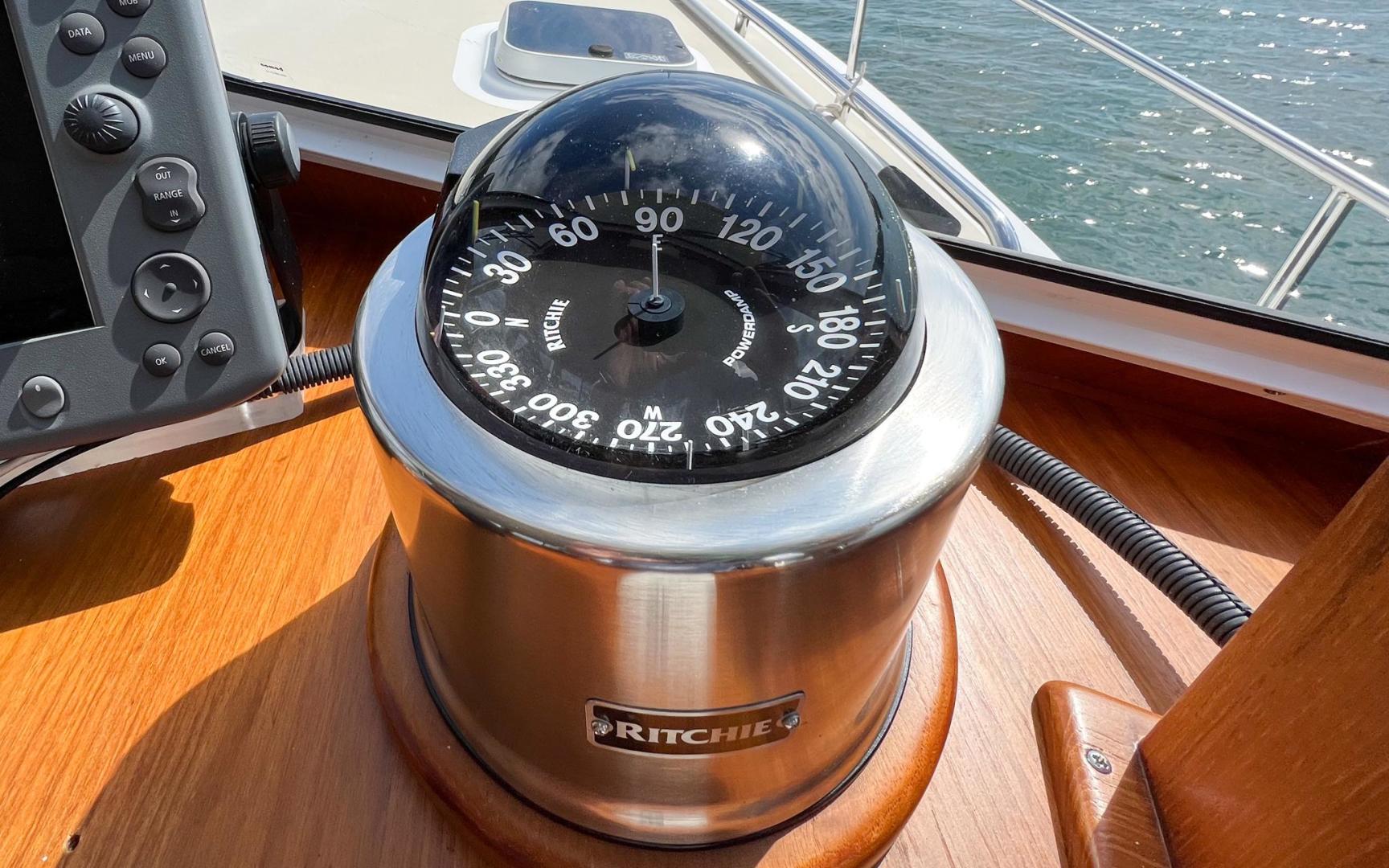

- 5" Ritchie compass
Upper Helm Station
- Raymarine C-80 multifunction display
- Raymarine ST-6001 hydraulic autopilot
- Raymarine ST-60 Tridata depth/speed/log display
- Raymarine Ray 230 marine VHF
- Raymarine Ray 430 loudhailer
- 5" Ritchie compass
Electronics Mast
- Raymarine closed array radar dome
- GPS antenna
- (2) VHF antenna
Electrical System
12 Volt DC System
- 12 Volt DC electrical distribution panel
- (3) 4D 12 volt batteries (2 house and 1 engine start)
- (1) Group 24 generator start battery
- Dual bank battery selector switch
- (3) 12 volt outlets upper and lower helm
120 Volt AC System
- 110 Volt AC electrical distribution panel

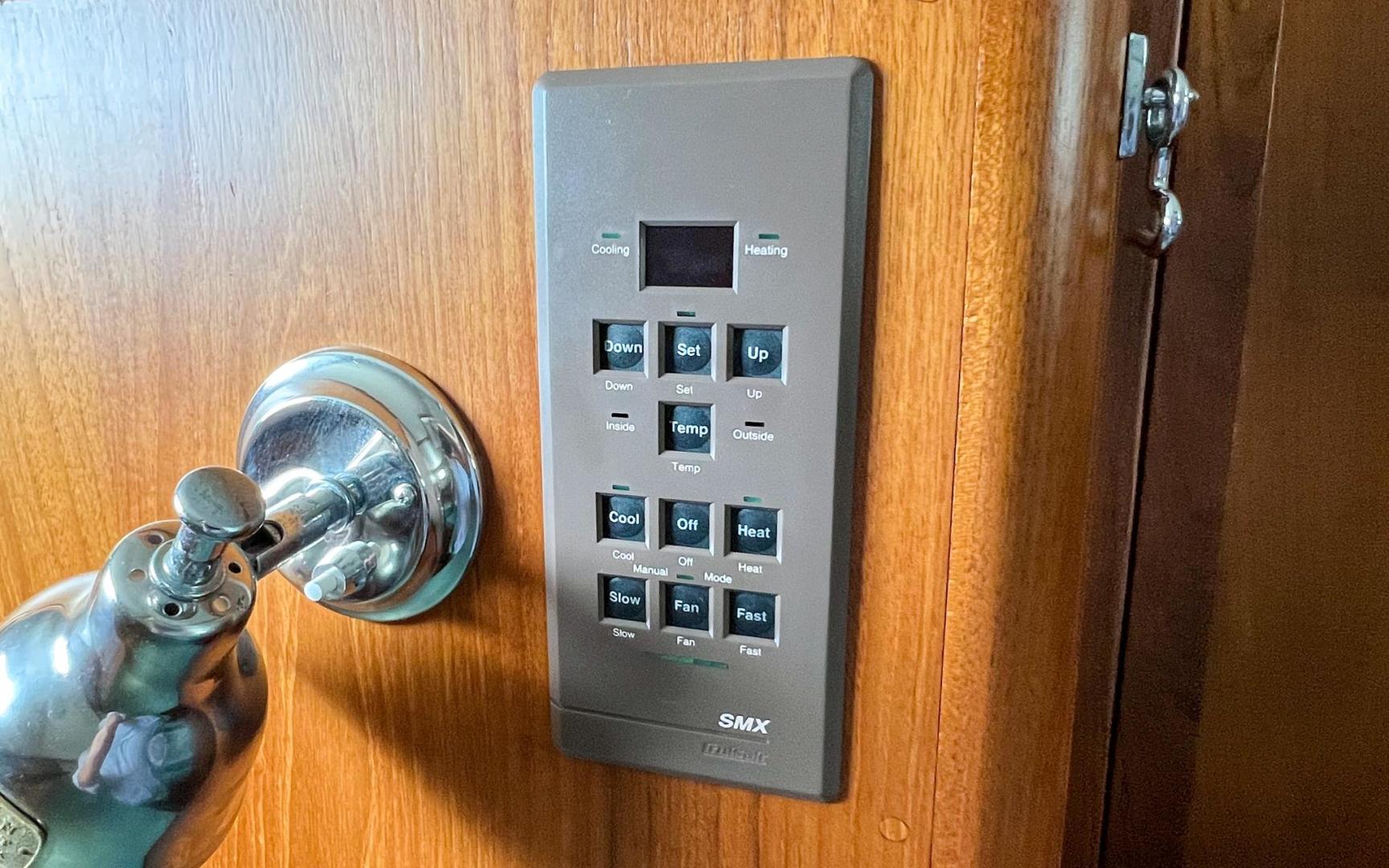

- Cruiseair air conditioning/heat systems
- (6) 120 volt AC outlets
- (2) 30 amp shore power receptacles
- (2) 50´ 30 Amp cables for dockside power
Genset
- Northern Lights 5kw generator with cocoon
Inverter
- Prosine 2.0 inverter/charger
Additional
- Heatercraft “Bus” cabin heater, runs off engine.
- 12-Gallon hot water heater off engine or 110 volt
Mechanical Systems

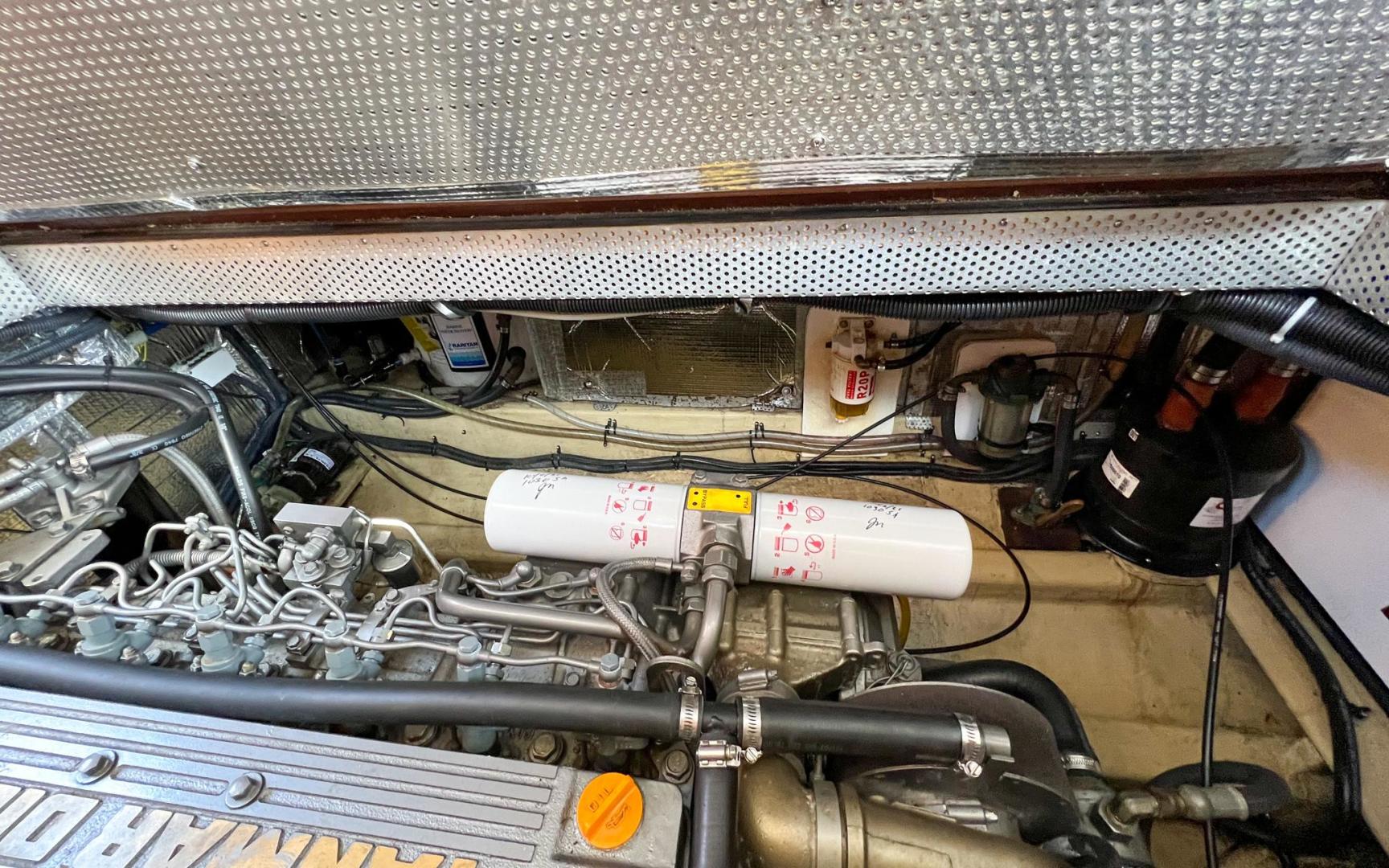

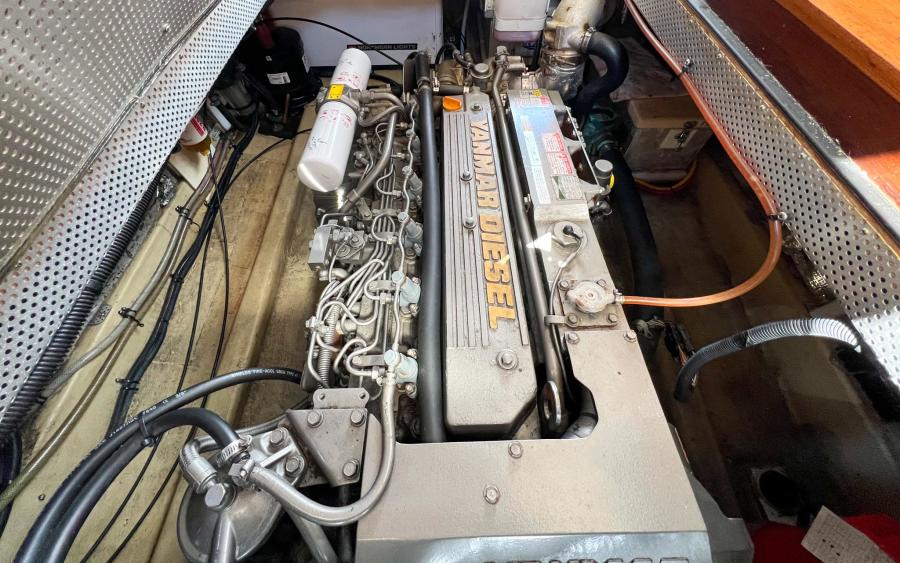

- Single Yanmar 6LY2A-STP diesel, 440 hp, 6 cylinder, FWC, with 1038 hours as seen on the lower helm meter ( meter on flybridge not accurate)
- ZF280 transmission with 2.0:1 reduction gear
- Evolution shaft drive system
- 1 ¾” Stainless steel shaft
- Evolution line cutter
- Michigan 24 x 20 left handed 4-bladed propeller
- Sounddown muffler
- Morse twin lever controls at both helms
- Bronze rudder
- Racor 900M fuel filter
- Electric oil change pump system
- Bennett trim tabs
- Extra engine room insulation
- Sea Star hydraulic steering
Performance
- Cruising speed: 15-16 knots @ 2600 RPM
- Maximum speed: 20 knots @ 3200-3300 RPM
Accommodations

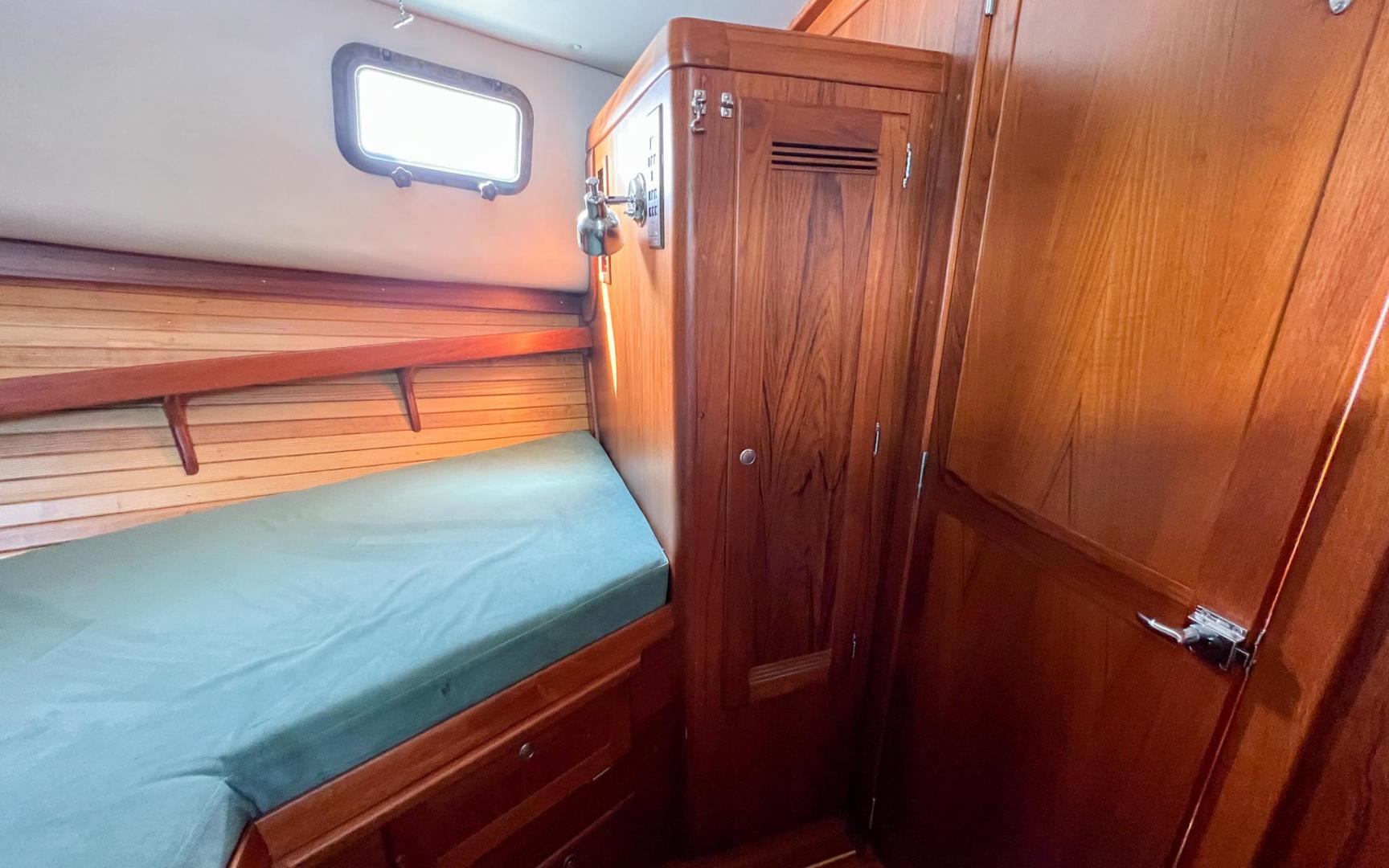

Gazebo sleeps four in a satin varnished teak interior with a varnished teak and holly sole. She has the standard Robinhood 33 Flybridge Layout which includes a forward stateroom with large v-berths with in-fill, and storage under v-berth and shelves above; hanging locker to starboard

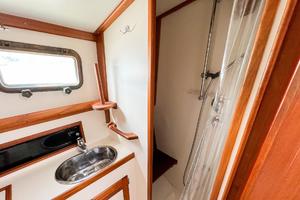

Aft to starboard is a head with sink vanity and separate shower with teak seat:
- Vacuflush fresh water head
- Single basin stainless steel sink with pressurized fresh hot/cold mixer head
- Large mirror
- Stall shower

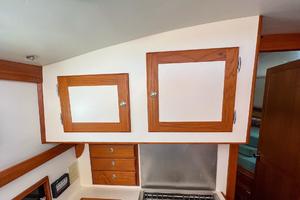

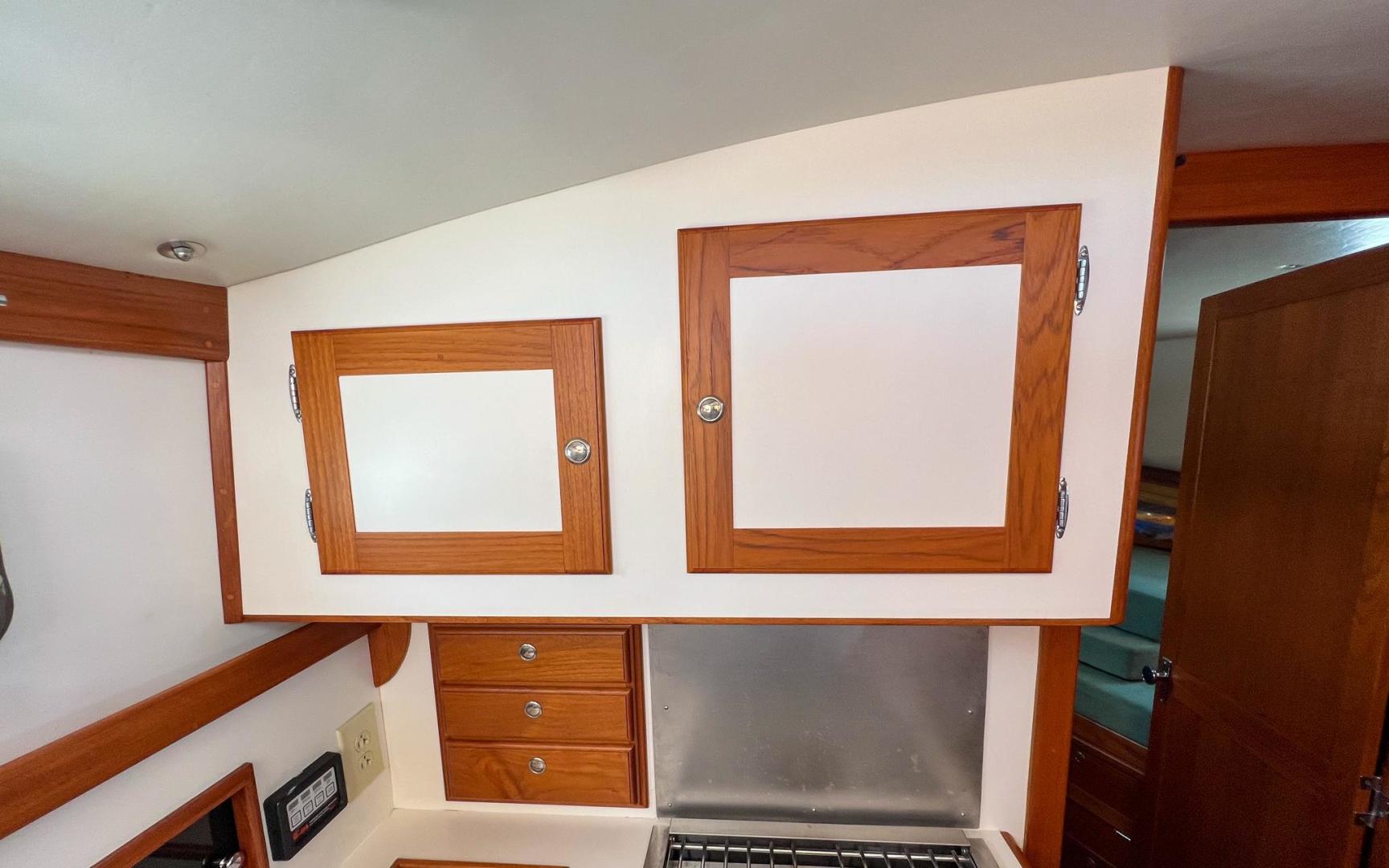

The Spacious galley to port with U-shaped counter, also boasts a:
- Force-10 three burner propane stove/oven
- Sharp Carousel microwave oven
- Double stainless steel sinks with pressurized fresh hot/cold mixer head
- Norcold AC/DC refrigerator
- Storage lockers above and below countertops

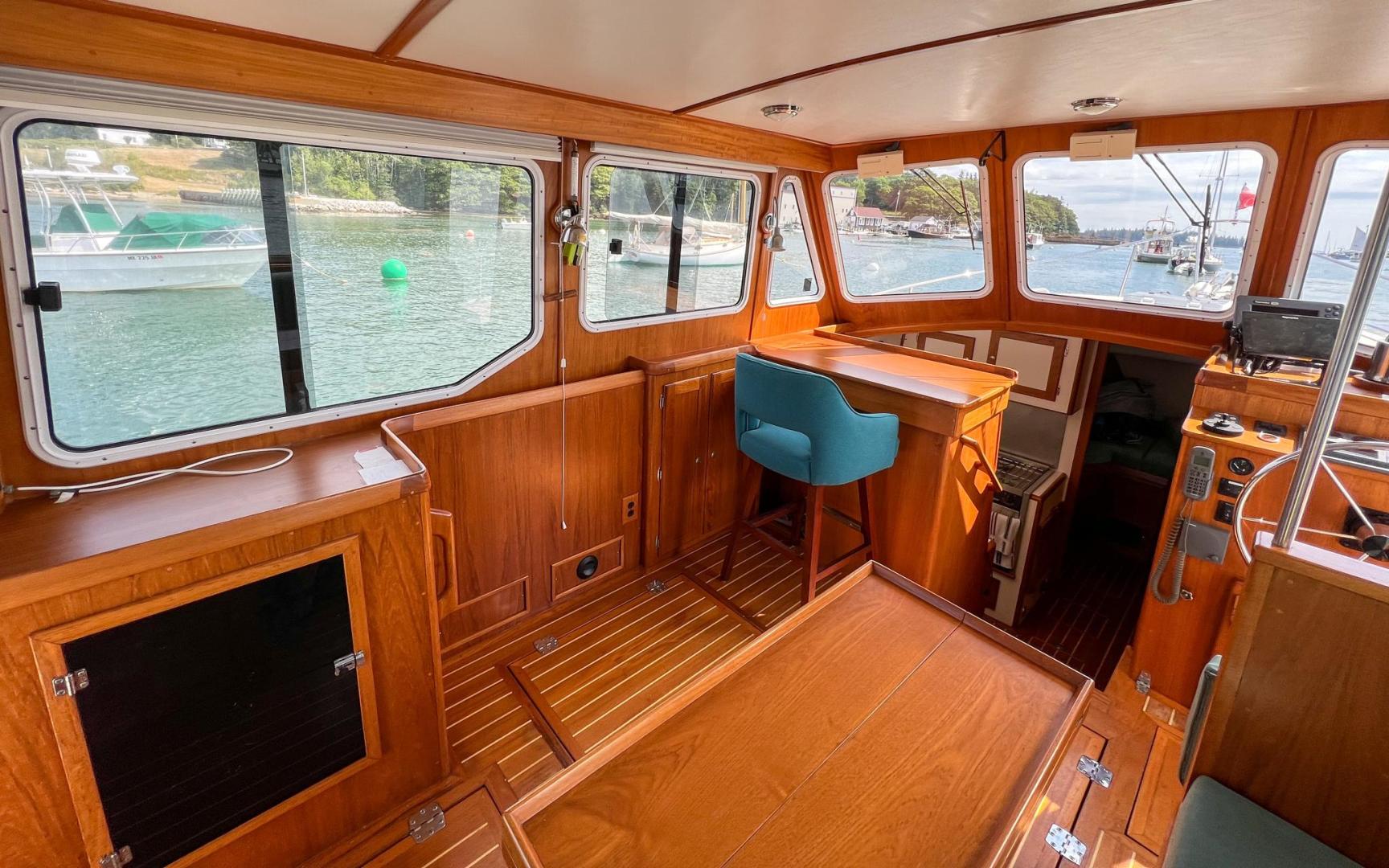

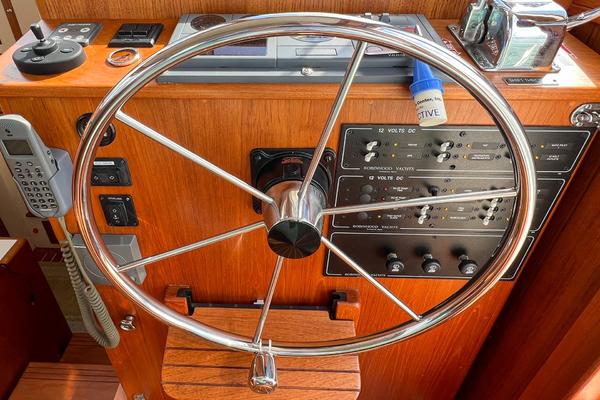

Up 2-steps to the main salon which features lower steering station to starboard with fold-down Sea Mist green Ultrasuede Captain’s chair. There is a fiberglass sliding door beside the helm which allows for great access to the recessed deck. An L-shaped settee is aft of the helm station which converts to a double berth, and there is a teak moveable hi-lo table with leaves. The berth cushions are attractively covered in a Sea Mist green fabric. The teak and holly sole throughout with the varnished teak interior, with ash hull ceilings. There are 2 hatches below with screens and shades and 4 opening bronze ports with screens and curtains. The salon has opening windows port and starboard.
The flybridge has comfortable seating for 4, and full instrumentation and controls. Gazebo's flybridge is spacious with steering on the centerline with two Pompanette swivel chairs, and an aft comfortable bench seat.
Tankage
Fuel
- 225 gallons in (2) 112 gallon aluminum tanks
Water
- 146 gallons (50 gallons in bladder tank, 96 gallons in polyethylene tank)
Holding
- 29 gallons in a polyethylene tank with a manual diaphragm discharge
Additional Equipment
- 35 Pound CQR anchor with 100’ 5/16” chain & 200’ 9/16” nylon rode
- Fortress FX 23 anchor with 34’ 3/8” chain and 200’ rode
- 2 Bronze anchor rollers
- LPG detector and shutoff
- (2) 10 Pound aluminum propane tanks mounted in fiberglass box in cockpit
- (3) Electric bilge pumps
- Fire extinguishers
